Hardware Specifications

Vendor/Brand	D-LINK
Model	DPN-100 Rev A2
Chipset	Lantiq PEB98035
ODM	T&W
ODM Product Code	TW2362H-CDEL
Flash	8 MB
RAM	64 MB
System
HSGMII
Optics
IP address
Web Gui
SSH
Telnet
Serial
Form Factor	miniONT SFP

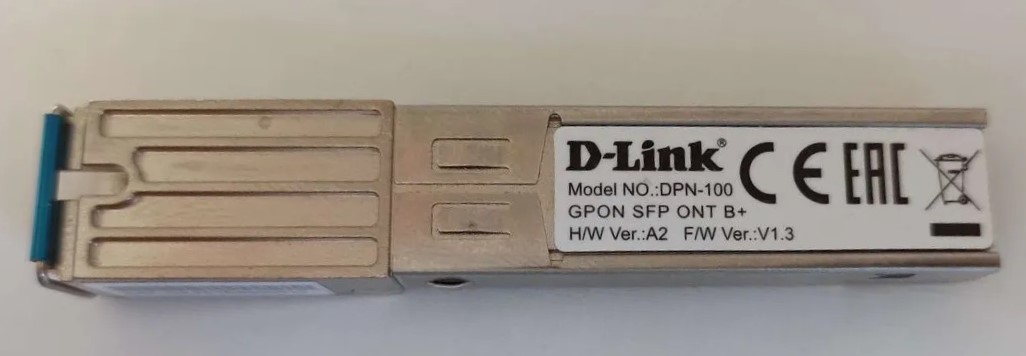

DPN-100 Rev A2

Once you access the stick via ssh you will be presented with a second tier login. The credentials to access the dell shell are: username: twmanu , password: twmanu.

Firmware is interchangeable with:

• Zyxel PMG3000-D20B
• Halny HL-GSFP
• Zisa OP151s
• T&W TW2362H-CDEL

GPON/OMCI settings

Note

All commands start from the twmanu shell.

Setting ONU GPON Serial Number

Note

The S/N is stored in the ASCII format.

manufactory
set sn ALCLf0f0f0f0
exit
hal
set sn ALCLf0f0f0f0

Setting ONU GPON PLOAM password

Note

The PLOAM password is stored in the ASCII format.

This can be done easily via the web UI. If you prefer to do it via the shell use:

manufactory
set password 1234567899

or in hex format without any 0x or separator:

manufactory
set password hex 31323334353637383939

Show ONU GPON info

show info
